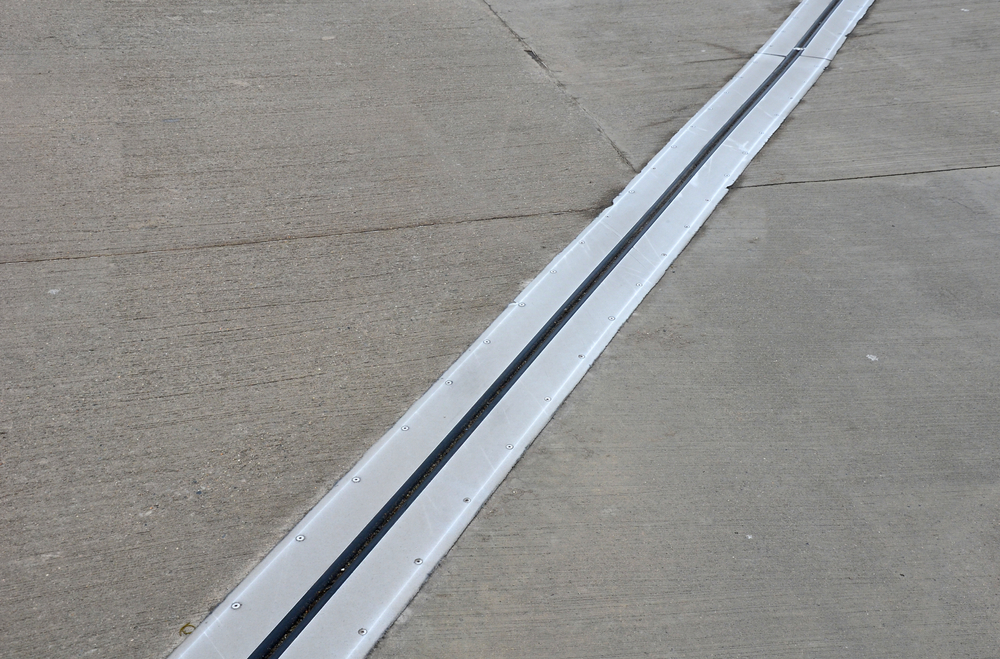

Understanding Expansion Joints: Why Your Structures Need Them

In the world of engineering and construction, subtle yet powerful elements often determine whether a structure lasts decades or crumbles prematurely. One such critical component is the expansion joint. Despite being overlooked by many outside the profession, expansion joints play a foundational role in ensuring the longevity, safety, and integrity of bridges, buildings, pavements, and other infrastructure. This blog explores the importance of expansion joints, with a focus on their applications in concrete, bridges, and various structural elements. We’ll also examine the different types used in concrete pavement, and why every architect or engineer should have a deep understanding of these structural marvels.

The Science and Purpose Behind Expansion Joints

The fundamental reason expansion joints are necessary lies in how materials behave under temperature changes. Most construction materials, particularly concrete and steel, expand when heated and contract when cooled. These seemingly minor shifts can accumulate stress in rigid structures. Without designated spaces to absorb this movement, these stresses manifest as cracks, distortions, or even structural failure.

This is where expansion joints come in. They are intentional gaps or separations in construction that allow materials to expand and contract freely without damaging the structural elements around them. The purpose of expansion joints in bridges, for example, is to mitigate the intense thermal movement caused by sun exposure, seasonal temperature variations, and the weight of constant traffic. In colder regions, freezing temperatures followed by warming can cause cycles of expansion and contraction that would devastate a rigid structure without joints to handle the movement.

Besides thermal shifts, expansion joints are also crucial in managing vibrations, seismic activity, wind loads, and settlement differences in large structures. By isolating sections of a building or roadway, these joints serve as flexible barriers that absorb stress and protect the structural system as a whole.

Building Expansion Joints: Vital for Durability and Flexibility

In multi-story buildings and other large constructions, building expansion joints are indispensable. They are strategically placed in locations where movement due to temperature, seismic shifts, or settlement is most likely. Without them, materials would press against each other with immense force during expansion, leading to cracks in walls, ceilings, or even support columns.

Take, for instance, a long commercial building constructed entirely with concrete and steel. As the sun heats the structure during the day, different parts of the building may expand at varying rates. Without a building expansion joint, this uneven movement can distort the frame, warp door and window frames, and eventually lead to irreversible structural damage. Architects and engineers design expansion joints to segment buildings into smaller, more manageable blocks that can move independently and flex without damage.

Modern building codes and standards require the inclusion of these joints at specific intervals, depending on the length, height, and materials of the structure. These codes often factor in local climate conditions, anticipated movement loads, and other variables to determine the precise spacing and type of joint required. For high-rise buildings or those in seismic zones, more sophisticated joint systems with elastomeric materials or sliding plates may be used to accommodate greater movement and stress.

The Role of Concrete Expansion Joints in Infrastructure

Concrete, while strong and durable, is highly susceptible to cracking under pressure if movement isn’t properly accounted for. Concrete expansion joints are used in sidewalks, driveways, parking lots, highways, and airport runways to prevent uncontrolled cracking.

During curing, concrete naturally shrinks as it loses moisture. Once in service, it continues to expand and contract with environmental conditions. Without expansion joints, these stresses would create unsightly and dangerous cracks that compromise not just the appearance, but the safety and performance of the pavement.

A typical concrete expansion joint includes a filler material that is compressible and durable, such as rubber, foam, or cork. This material absorbs movement and protects adjacent slabs from direct contact. In outdoor settings like pavements or parking areas, these joints also help prevent water infiltration, which can exacerbate freeze-thaw damage in colder climates.

Contractors typically place concrete expansion joints at regular intervals depending on the slab size, thickness, and anticipated load. In residential driveways, joints may be spaced every 10 feet, while in heavy-duty industrial floors, spacing and design are tailored to the expected movement and load profile.

Types of Expansion Joints in Concrete Pavement

The types of expansion joints in concrete pavement are varied and tailored to specific needs. Each type is designed to accommodate different stressors, movement directions, and environmental challenges. Here are the primary categories:

The most common is the strip expansion joint, which involves inserting a compressible strip into a groove cut into the concrete slab. This allows for horizontal movement and prevents cracks along the joint line. Strip joints are widely used in sidewalks and light traffic areas.

A more advanced version is the dowelled expansion joint. In this type, steel dowels are used to transfer loads between adjacent slabs while allowing for horizontal movement. This type is crucial in highway and airport pavements where large vehicular loads pass over jointed areas.

Another form is the modular expansion joint, often seen in bridges or large airport runways. These joints consist of multiple steel-supported rubber modules that can accommodate complex three-dimensional movement—vertical, horizontal, and rotational. Though more expensive, modular joints provide superior performance in extreme environments.

Compression seal joints use pre-compressed rubber or foam seals inserted into concrete gaps. As they expand, they form a watertight seal that accommodates movement and prevents water ingress. These are ideal for parking decks and elevated highways.

Finally, there are sliding plate expansion joints, primarily used in bridge structures. These consist of overlapping metal plates that slide over each other during movement. They are capable of handling very large movements and are often installed in combination with elastomeric bearings to absorb shock and vibration.

Why Expansion Joints Are an Engineering Necessity

The significance of expansion joints extends far beyond technical necessity; they are integral to modern construction’s very philosophy: to build for longevity, flexibility, and resilience. Whether it’s a towering skyscraper, a sprawling bridge, or a suburban driveway, expansion joints offer a reliable solution to the inevitable movement and stress that structures encounter during their lifespans.

In bridge design, for instance, the purpose of expansion joints in bridges is not only to manage thermal expansion but also to ensure passenger safety. Joints help prevent abrupt bumps or dislocations at section transitions, which can be dangerous at high speeds. In earthquake-prone areas, joints allow bridge segments to move independently, reducing the chance of catastrophic collapse.

Likewise, in urban development, the use of building expansion joints allows structures to coexist peacefully despite varying loads, temperatures, and environmental pressures. This becomes particularly important in cities where buildings are constructed in close proximity and infrastructure must handle constant vibrations from traffic, subways, and utility work.

The cost of omitting or improperly designing expansion joints can be enormous. Cracked walls, warped floors, collapsed pavements, and failed bridges are all preventable with the right joint design. Maintenance and repair costs skyrocket in the absence of proper joints, leading to increased liabilities and shorter structure lifespans.

What’s more, the presence of correctly designed and placed expansion joints simplifies maintenance. It becomes easier to isolate problems, make targeted repairs, and prevent deterioration from spreading. This is especially critical in infrastructure that serves thousands or millions daily, such as highways, runways, and transit hubs.

Conclusion

Understanding the role of expansion joints is vital for anyone involved in construction, design, or infrastructure management. From the purpose of expansion joints in bridges to the various types of expansion joints in concrete pavement, these often-invisible features are the unsung heroes of structural durability. Incorporating them properly means embracing a forward-thinking approach that prioritizes safety, efficiency, and sustainability—an approach that every modern builder should champion.
